Israel collaborated with apartheid S.African in developing ICBM rocket to deter the United States or Soviet Union

Posted by Arab Defense Industry on Tuesday, March 2, 2010

Israel and South Africa collaborated closely in rocket technology in the 1970's and 1980's. South Africa provided Israel with the uranium and test facilities it needed for its strategic weapons programmes. In exchange Israel provided aerospace technology. This included the capability of building the ten-tonne solid propellant rocket motors designed for the Israeli Jericho-2 missile. These motors were the basis of two space launchers for an indigenous 'R5b' space programme. It seems that South Africa also planned to use these motors in a series of missiles to provide a nuclear deterrent.

Two shorter-range missiles (the RSA-1 and RSA-2) were intended for use on Cuban or Warsaw Pact troop concentrations should a massed attack be made from an adjacent country. The RSA-4 ICBM was also in long-term development, possibly to deter the United States or Soviet Union from sponsoring such an attack in the first place.

The original intended payload for the missiles was said to be the uranium gun-type atomic bombs developed in South Africa between 1971 and 1989. Seven of these weapons were built, each with a mass of about one tonne, a diameter of 65 centimetres and a length of 1.8 meters. Each device contained 55 kilograms of highly enriched uranium, producing a fission yield of 10-18 kilotons. Five of the weapons were configured as air-launched bombs, but were said to be adaptable to missile launch. It was planned during the 1990's to lighten and modernise these warheads, and use tritium-boosting to increase the yield to 100 Kt. A missile using the original devices would have to be provided with a heat shield, implying a total warhead mass of around 1500 kg. This would not have permitted the RSA-4 to reach intercontinental range. Presumably the boosted, modernised warheads, that were to have been completed by 2000, would have been under 700 kg and allowed the missile to reach New York or Moscow.

Substantial facilities for assembly, test, and launch of the rockets were built at the Overberg Test Range at the tip of Africa. Overberg was also used for Israeli Jericho-2 test flights.

As a cover for and supplement to the missile development, the R5b indigenous space programme was funded. This would use the RSA-3 and RSA-4 launchers. Four South African space rockets were built. Three were launched into suborbital trajectories in the late 1980's in support of development of the RSA-3 launched Greensat Orbital Management System (for commercial satellite applications of vehicle tracking and regional planning). The range was also used for aerospace and system testing for British, Swedish and Czech programmes.

Following the decision in 1989 to cancel the nuclear weapons program, the missile programs were allowed to continue until 1992, when military funding ended and South Africa officially ended its missile collaboration with Israel. All ballistic missile work was stopped by mid-1993. In order to join the Missile Technology Control Regime the government had to allow American supervision of the destruction of key facilities applicable to both the long range missile and the space launch programmes. The RSA-3 and RSA-4 space launchers were therefore cancelled in 1994.

Prime Contractor Houwteq had to dismantle its existing RSA rocket components, and retrieve and sequester technical data from its subcontractors. Propellant manufacturer Somchem eliminated the RSA solid propellants and rocket casings that remained in stock. Denel filled in its large engine casting pits at Somerset West and demolished its large-scale X-ray inspection equipment. The Hangklip static motor test facility at Rooi Els was converted to a nature reserve. The Overberg Test Range was allowed to remain for use by 'potential foreign partners'. Following these measures, South Africa joined the Missile Technology Control Regime in September 1995.

Houwteq's staff at Overberg grew to a peak of 500 in 1992, before the cancellations began. By 1997 the staff was reduced to 28. Houwteq's Ian Farr continued to market the Overberg facility for commercial launchers until at least 1997. Nothing came of these efforts, and it seems that the book was closed on further indigenous African space activities.

Since much remains undisclosed about the Israeli Jericho missiles and Shavit / Next space launchers, the material on the South African rockets provides some insights into Israeli programmes. The RSA-2 clearly corresponds closely to the Jericho-2, and the RSA-3 to the Shavit launcher. It is interesting that there has been no mention of an Israeli counterpart to the Peacekeeper-class first stage motor of the RSA-4. This may represent a 'reserve' Israeli capability to upgrade the Jericho-2 to ICBM range that has never been made public. However there have been reports of Israeli development of a MIRV capability for its missiles. The post-boost warhead dispenser for such a capability could correspond to the RSA-4 fourth stage.

Manufacturer: IAI. Launches: 3. Success Rate: 100.00%. First Launch Date: 1989-06-01. Last Launch Date: 1990-11-19. Launch data is: incomplete. Version:


Intermediate range ballistic missile. Status: Out of production.

It is conjectured that this designation was assigned to an intermediate range single-stage ballistic missile consisting of the first stage of the RSA-3. Purported mission was to strike Cuban military concentrations from mobile launchers on South African territory. The rocket motor closely followed the design of the Israeli Jericho-2 first stage.

to a: 1100 km range trajectory. Liftoff Thrust: 412.700 kN (92,779 lbf). Total Mass: 12,000 kg (26,000 lb). Core Diameter: 1.30 m (4.20 ft). Total Length: 8.00 m (26.20 ft). Standard warhead mass: 1,500 kg (3,300 lb). Version:


Intermediate range ballistic missile. Status: Out of production.

It is conjectured that this designation was assigned to an intermediate range ballistic missile consisting of the first and second stages of the RSA-3. Probably very similar to, or a licensed copy of the Israeli Jericho-2 missile. A third stage apogee kick motor was added to produce the RSA-3 space launcher.

to a: 1900 km range trajectory. Liftoff Thrust: 412.700 kN (92,779 lbf). Total Mass: 23,000 kg (50,000 lb). Core Diameter: 1.30 m (4.20 ft). Total Length: 15.00 m (49.00 ft). Standard warhead mass: 1,500 kg (3,300 lb). Version:


Credit - © Mark Wade

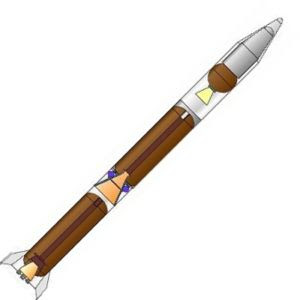

All-solid orbital launch vehicle.

The RSA-3 satellite launcher began development as an IRBM in the 1980's because of the perceived Soviet threat and isolation of South Africa. It was developed with the assistance of Israel and was believed to be essentially identical to the Israeli Jericho missile/Shavit launch vehicle. The objective of the satellite launcher was to place a small surveillance satellite of 330 kg mass into a 41 degree, 212 x 460 km orbit around the earth. Development continued even after South African renunciation of its nuclear weapons. However the launcher was found not to be viable commercially and so was cancelled in mid-1994.

The RSA-3 was developed by the Houwteq organization at Grabouw, 30 km east of Cape Town. The Overberg Test Range near Bredasdorp, 200 km east of Cape Town, was used for test flights. The engine test facility was at Rooi Els. At the peak of development in 1992 50 - 70 companies in the public and private sector were involved, employing 1300 -1500 people.

As in the Shavit, the first and second stages used the same rocket motor loaded with 9 metric tons of propellant. The first stage used vanes in the exhaust for steering during the first 16 to 20 seconds of flight, after which the fins at the base of the vehicle provided aerodynamic control. The second stage had a higher expansion nozzle and may have been equipped with TVC for steering. Atop the second stage was a guidance / orientation / spin-up bus for the third stage and payload. Total mass of this bus and the payload shroud was 583 kg. After second stage burnout, the upper stage package entered a 148 second ballistic coast. A sideways trajectory deflection was made and the shroud was jettisoned. Then the third stage and payload were spun up, following by separation of the bus. The spin-stabilized third stage then made the 4,555 m/s burn to place the payload into orbit. The third stage was evidently similar to a 5 metric ton thrust spherical motor displayed by the Israelis for their Shavit launch vehicle.

The composite payload fairing for the RSA-3 was 4.5 m long, 1.3 m in diameter, and had a mass of 57 kg. The solar array for the satellite had a mass of less than 7 kg and with three panels could supply 295 W of power. The fairing could resist temperatures of up to + 100 degrees C during ascent and the thermal satellite blanket insulated the payload from temperatures ranging from -80 degrees C to + 100 degrees C.

As an ICBM, it is estimated that the three-stage version of the RSA-3 could have delivered a 340 kg warhead on Washington DC or a 400 kg warhead on Moscow. However such lightweight warheads were beyond declared South African technology. Therefore the RSA-3 was most likely purely a space launch adaptation of the RSA-2 IRBM, with the Peacekeeper-class RSA-4 fulfilling the ICBM role.

The RSA-3 and its mobile erector-launcher were in an advanced stage of test at the time the program was cancelled. It is not known what happened to the hardware that was built. Warheads of the size and type required for use on the RSA-3 were not in the inventory according to the declarations made by South Africa at the time of its nuclear disarmament and signature of the nuclear non-proliferation treaty. The RSA-4, was in the design stage.

The following is the detailed launch trajectory of the RSA-3:

Event Time from Launch -sec Height -km Slant Range - km Vehicle Mass - kg Velocity - m/s
Ignition 0.0 0.0 0.0 23,564 0
Separation Stages 1/2 54.9 12.8 8.4 13,349 575
Separation Stages 2/3 140.0 104.3 179.8 2,961 3,225
Bus maneuver and shroud ejection 172.0 140.0 272.0 0 3,116
Ignition of Apogee Kick Motor 248.0 196.5 489.0 2,378 2,945
Burnout of AKM 342.0 210.0 914.0 0 7,498
Separation of Payload 460.0 212.0 1806.0 330 7,500

Launches: 3. First Launch Date: 1989-06-01. Last Launch Date: 1990-11-19. LEO Payload: 330 kg (720 lb). to: 210 km Orbit. at: 41.00 degrees. Apogee: 300 km (180 mi). Associated Spacecraft: Greensat. Liftoff Thrust: 412.700 kN (92,779 lbf). Total Mass: 23,630 kg (52,090 lb). Core Diameter: 1.30 m (4.20 ft). Total Length: 17.65 m (57.90 ft).

  • Stage1: 1 x RSA-3-1. Gross Mass: 10,215 kg (22,520 lb). Empty Mass: 1,100 kg (2,400 lb). Motor: 1 x RSA-3-1. Thrust (vac): 456.000 kN (102,512 lbf). Isp: 265 sec. Burn time: 52 sec. Length: 6.30 m (20.60 ft). Diameter: 1.30 m (4.20 ft). Propellants: Solid.
  • Stage2: 1 x RSA-3-2. Gross Mass: 10,971 kg (24,186 lb). Empty Mass: 1,771 kg (3,904 lb). Motor: 1 x RSA-3-2. Thrust (vac): 476.600 kN (107,144 lbf). Isp: 277 sec. Burn time: 52 sec. Length: 6.40 m (20.90 ft). Diameter: 1.30 m (4.20 ft). Propellants: Solid.
  • Stage3: 1 x RSA-3-3. Gross Mass: 2,048 kg (4,515 lb). Empty Mass: 170 kg (370 lb). Motor: 1 x RSA-3-3. Thrust (vac): 58.800 kN (13,219 lbf). Isp: 298 sec. Burn time: 94 sec. Length: 2.60 m (8.50 ft). Diameter: 1.30 m (4.20 ft). Propellants: Solid.


All-solid orbital launch vehicle. Status: Development ended 1994.

The RSA-4 ICBM / satellite launcher was a planned follow-on to the RSA-3. A large new first stage optimised the vehicle and more than doubled the payload in comparison to the RSA-3. It is not known if the project reached the point of testing of the large motor, which was equivalent to the US Peacekeeper first stage.

The second and third stages were essentially those of the RSA-3. The fourth stage was clearly adapted from an ICBM MIRV post-boost bus platform. As an ICBM or orbital nuclear system the RSA-4 would have been capable of delivering a single 700 kg warhead anywhere on earth.

Work on the RSA-4 was cancelled in 1994. An attempt was made by Houwteq to market the RSA-4 as a launcher for MEO earth satellite constellations. It was not to be...but the sales brochure from that effort survives and is reproduced below.
